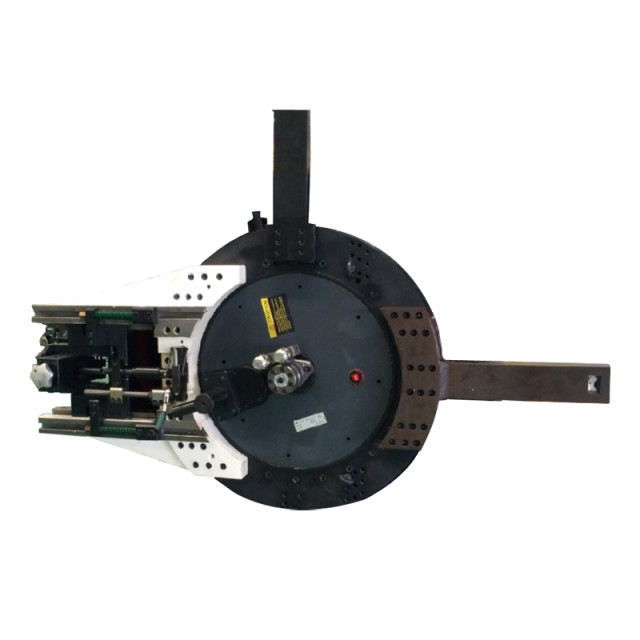

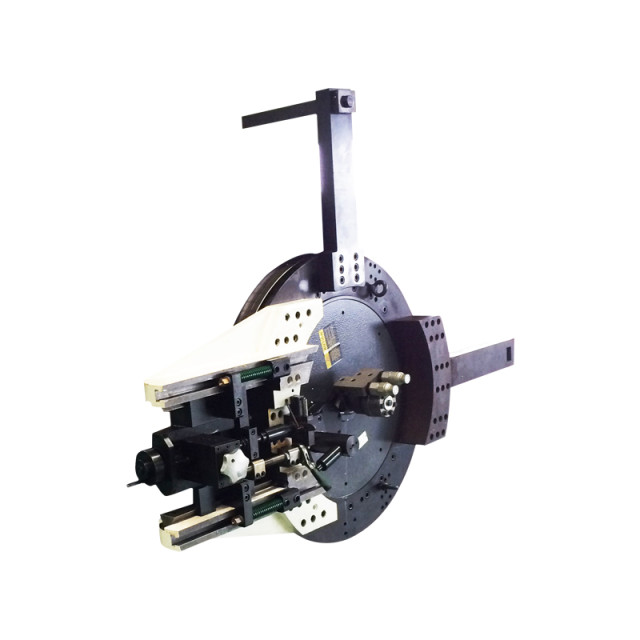

Heavy Duty Pipe Beveling Machine

AOTAI Heavy duty pipe beveling machine is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces. With the special structure designing, the tool stroke can be fine-turning. Auto-feeding and Manual –feeding can be easily and freely chosen. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.

1、Tool stoke can be fine-turning

2、Beveling angel adjustable： 0-30deg

3、Cold cutting, without influence the material of the pipe

4、Auto feeding can be easily and freely exchanged

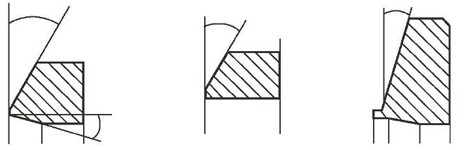

5、Beveling shape: U, Single-V, double-V, J ,and compound beveling

6、5models, Working range for pipe ID800-2050mm

7、Driven supplies: Electric Servo motor and Hydraulic optional

Above parameters just for reference only, not acceptance criteria

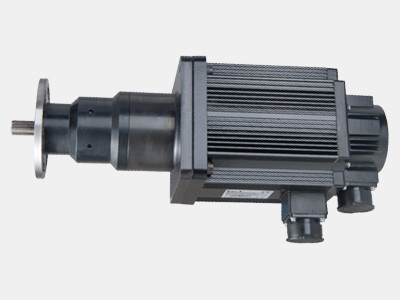

1、NC:

Powerful drive, High efficiency

Low noise ,Stable Performance

Electric requirement: 230V 1PH 50/60Hz;

380V 3PH 50/60Hz

Power：3.0KW or 5.5KW

Double motor for big model or heavy duty

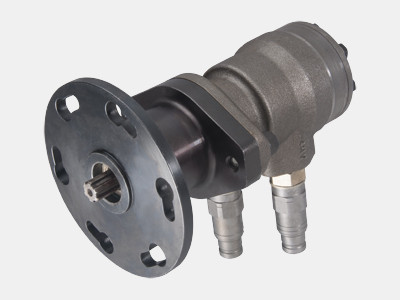

2、Hydraulic:

Powerful drive, High efficiency

Stable Performance, Low noise, Anti-explosion

Hydraulic requirement：28-50L/min @13Mpa

Electric requirement: 380V 3PH 50/60Hz

Rated Pressure：13MPa

Rated flow:28L/min

Max.Torque：380NM
