AOTAI CNP series High speed pipe cutting and beveling machine is a kind of efficient pipe cutting and beveling prefabrication CNC machine.designed to cut, bevel, single point on the pipe with high speed. considerable heavy wall and for any type of material.
Range for pipe OD：50-914mm
AOTAI CND Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. automatic feeding
AOTAI OCM Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel
OCF was developed pipe end beveling High speed，It is new equipment of pipe prefabrication.It adopt SIEMENS CNC system, hydraulic clamping , machine up/down. It process different types bevel shape according to customer’s requirement: beveling U, V, J, Facing ,Counter-boring,etc.
OSD/KSD Portable-bench pipe cutting and beveling machine is a portable and bench machine. It was developed cutting and beveling for pipe prefabrication. The main machine can be fixed on the bench in workshop, and it also can be used to field cutting and beveling with option our car type bench.
Range for pipe OD:20-720mm
This series of beveling machine tools were developed aims at large quantities of pipe end beveling processing，It is new equipment of pipe prefabrication. Bevel pipe fast, auto-center hydraulic clamping system, can match main machine auto-up/down system to suit different diameter pipes to use, suitable for bevel processing of all kinds of carbon steels, stainless steels, alloy steels, etc. Can bevel different types of shape according to customer’s requirement: U, V, J, Y, X,etc. excellent quality of beveling, efficient working, easy to operate.
Mini split frame pipe cutting and beveling machine used by pipefitters and welders in weld preparation for industrial pipe. smartly designed, ability to split in half at the frame, easy to install on the pipe line.
Range for pipe OD 12.5-152.4mm

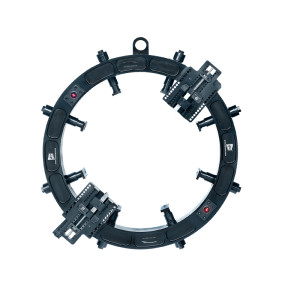

Aotai Standard split frame machine, designed to cut, bevel, single point, counterbore and face on the pipe, tube and flanges. It is a portable pipe cutting and beveling machine tools of clamshell style. smartly designed, ability to split in half at the frame, easy to install on the pipe line.
Range for pipe OD 1"-48"
Aotai Heavy duty split frame machine, designed to cut, bevel, single point, counterbore and face on the Heavy wall pipe and flanges. Ideal for wide diameter range 12” in the one machine, and 8 models are available from 12” to 120”.
Range for Pipe OD 12"-120"
The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts “T” shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 12.5-330mm
The ID mounted Y-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts “Y” shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 60-820mm
II-PIPE BEVELING MACHINE is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.
Range for pipe ID 80-820mm
