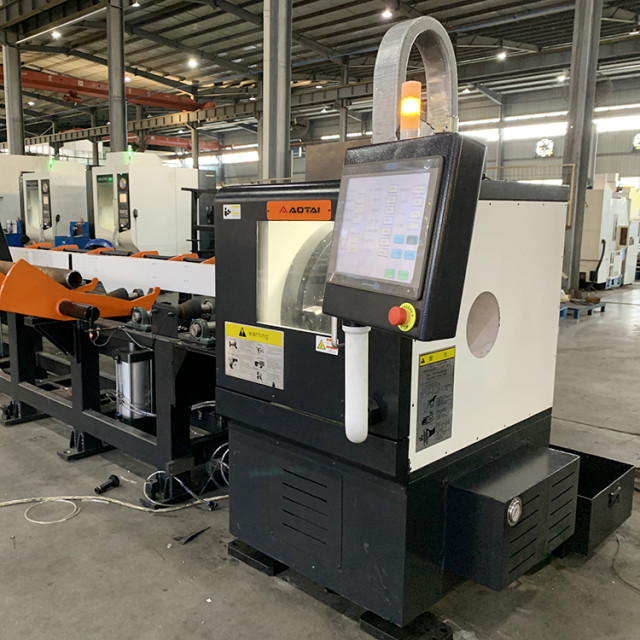

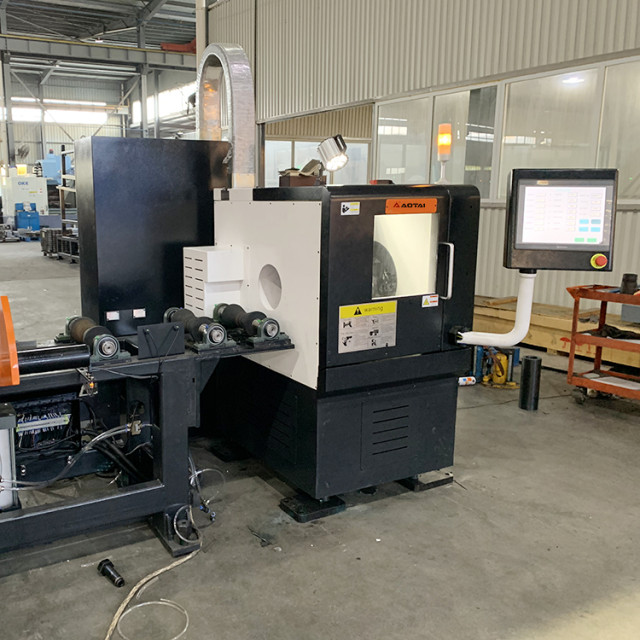

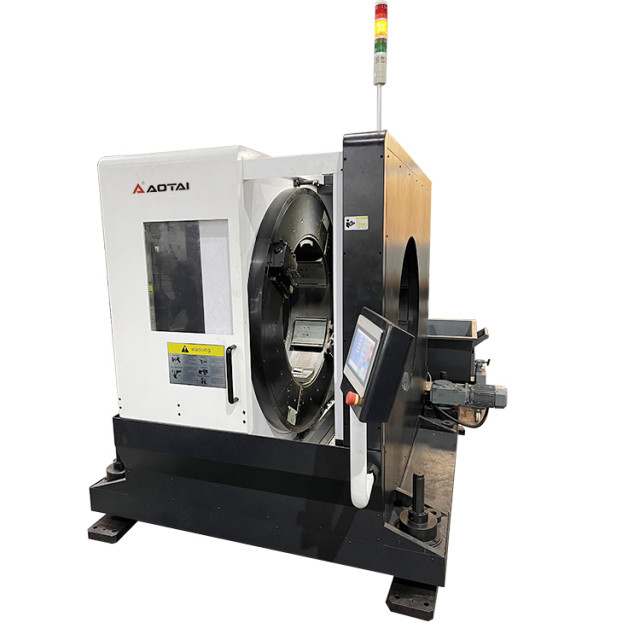

CND Stationary Pipe Cutting And Beveling Machine

AOTAI CND Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. automatic feeding

OVERVIEW

AOTAI CND Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. automatic feeding,  electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes. Pipe length setting system and pipe conveying system are optional. advantage with high speed, high precision, high quality of cutting, easy to control. it is the key equipment for all kinds of pipe prefabrication. suitable for cutting and processing pipe of oil, chemical, natural gas, nuclear power and other industry.

FEATURES

1、5 models are available in pipe OD:30-914mm
2、Cold cutting, don’t influence the pipe’s material
3、PLC control system, Touch-screen controller
4、Electric clamping system, self-centering, precision solid
5、Automatic feeding by program
6、Water cooling systems, increasing the life of machine and tools.
7、Varity of beveling shape: “U”,“V”,“J”, double “V”, compound bevels.
8、Cutting and beveling,and can be used for cutting, beveling, double beveling.
9、Machine up/down design, perfectly adapted to different diameter in the same pipe conveyer

CAPABILTY

1、Pipe cut off
2、Pipe end beveling
3、Pipe facing
4、Cutting and beveling
5、Compound beveling
6、Counterboring
7、Grooving

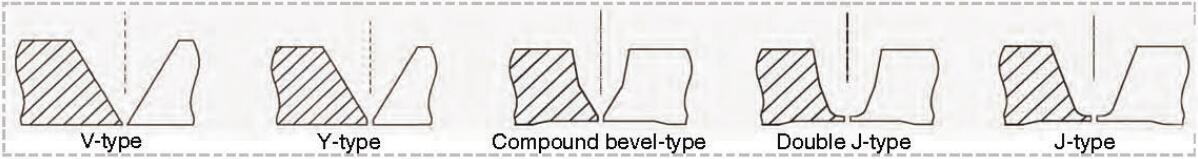

BEVELING SHAPE

*other beveling shape, angle and pipe material, please declare before order

SPECIFICATION

Model

Range

Thickness

Rotating

Motor Power (kw)

OD mm

mm

rpm

Cutting

Clamping

Up/down

Feeding

CND-168

30-168

3-25

0-60

3.0

0.75

0.75

0.75

CND-325

50-325

5-25

0-45

4.0

0.75

0.75

0.75

CND-508

273-508

6-25

0-30

7.5

0.75

1.5

0.75

CND-610

325-610

6-25

0-20

11

0.75

1.5

0.75

CND-914

610-914

6-25

0-15

11

0.75

1.5

0.75

Above  parameters just for reference only, not acceptance criteria

Power requirement:380V,50-60Hz,3P

Up/down travel:300mm

pipe length limit:200mm

Tool post quantity.:2 or4

Angle deviation:±0.5

Tool feeding: Automatic by program

Tool retract:Automatic by program
