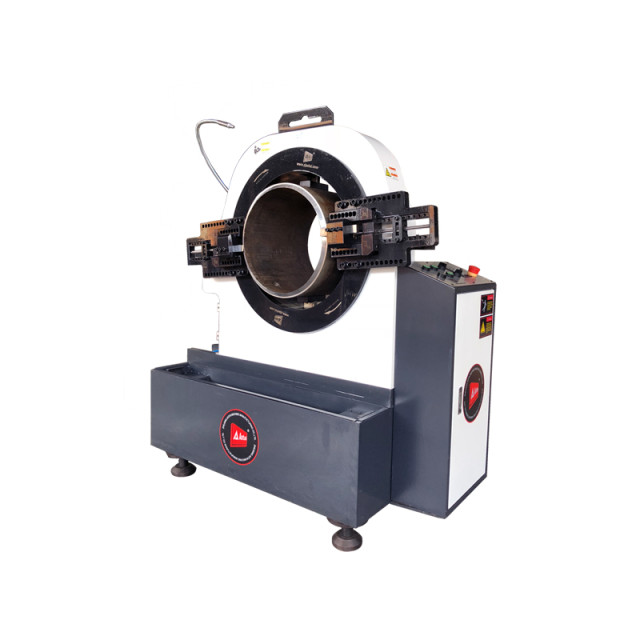

OCM Stationary Pipe Cutting And Beveling Machine

AOTAI OCM Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes. Pipe length setting system and pipe conveying system are optional. advantage with high speed, high precision, high quality of cutting, easy to control. it is the key equipment for all kinds of pipe refabrication. suitable for cutting and processing pipe of oil, chemical, natural gas, nuclear power and other industry.

Cold cutting, don’t influence the pipe’s material

Simple button-type controller, easy operation
Electric clamping system, self-centering, precision solid
Automatic feed and manual feed can be optioned.
Built-in water cooling systems, increasing the life of machine and tools.
Varity of beveling shape: “U”,“V”,“J”, double “V”, compound bevels.
Cutting and beveling，and can be used for cutting, beveling, double beveling.
Machine up/down design, perfectly adapted to different diameter in the same pipe conveyer

Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counterboring
Grooving

*other beveling shape, angle and pipe material, please declare before order

Above parameters just for reference only, not acceptance criteria

Power requirement：380V,50-60Hz,3P

Up/down travel:300mm （some type no up/down）

Feeding travel:150mm

pipe length limit:200mm

Tool post quantity.：2 or 4

Angle deviation：±0.5

Vertical deviation：±0.5mm @300mm pipe OD

Feeding：mechanical automatic;

Retract：Manual;

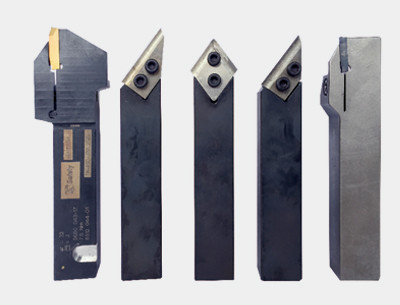

Options of form type and insert type tools
Available for cutting all thickness and material of pipe and beveling at any required angle.

Form Type	Insert Type
Material：M42  Kinds：Cut off，beveling，Double beveling，Compound beveling Angle：0°，30°，37.5°，double 30°/37.5°，37.5° 10° Length:90mm,150mm,200mm	Material: Tool holder:40Cr ; Insert: CSS or Carbide kinds：Cut off，beveling，Double beveling，Compound beveling Angle：0°，30°，37.5°，double 30°/37.5°
