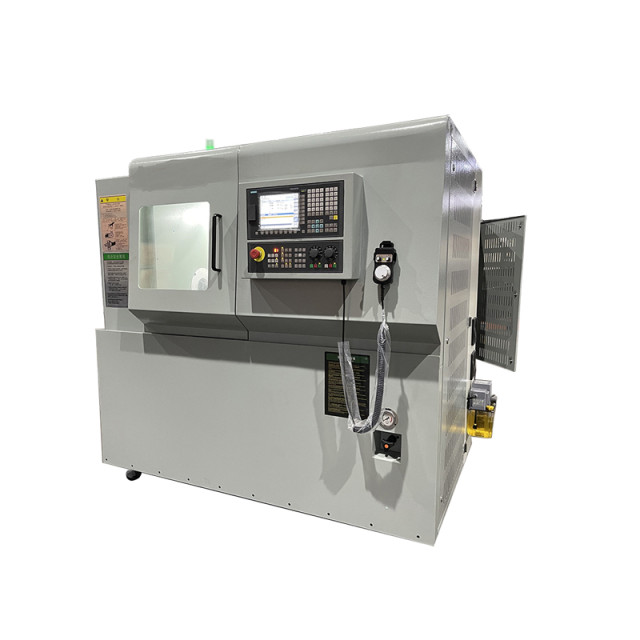

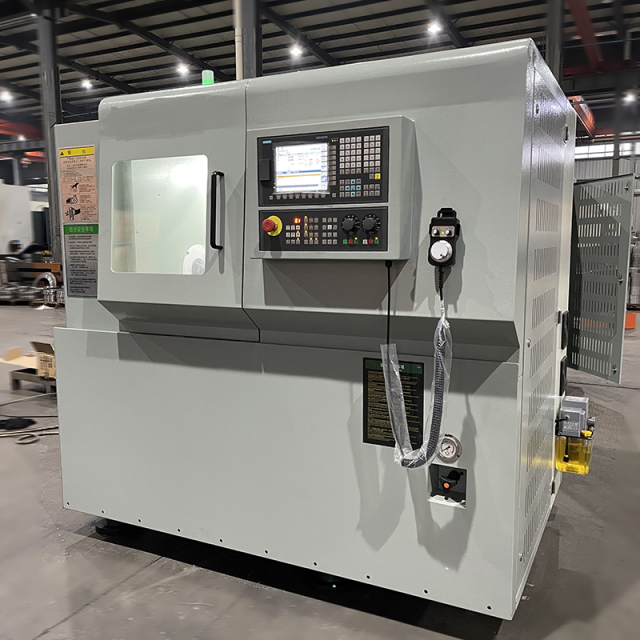

OCF was developed pipe end beveling High speed，It is new equipment of pipe prefabrication.It adopt SIEMENS CNC system, hydraulic clamping , machine up/down. It process different types bevel shape according to customer’s requirement: beveling U, V, J, Facing ,Counter-boring,
etc.
1.High speed pipe beveling machine;
2.Suitable for large quantities of pipe beveling process;
3.SIEMENS CNC system, easy to do compound beveling type;
4.Operate in touch screen, one button operation;
5.Pipe positioning system and pipe converyer optional;
5.Up/down design, perfectly adapted to different diameter;
7.Hydraulic clamping, double V clamping block
|
Model |
Working Range |
Thickness |
Mix.length |
Rotation |
Power |
Tool stroke |
|
OD mm |
mm |
mm |
rpm |
kw |
mm |
|
|
OCF-80 |
35-114 |
4-40 |
250 |
200 |
5.5 |
150 |
|
OCF-325 |
50-325 |
4-100 |
320 |
150 |
7.5 |
200 |
|
OCF-457 |
168-457 |
4-100 |
600 |
110 |
7.5 |
200 |
|
OCF-610 |
325-610 |
4-100 |
600 |
55 |
7.5 |
200 |
|
OCF-820 |
457-820 |
4-100 |
700 |
45 |
30 |
300 |
|
OCF-1220 |
508-1220 |
4-100 |
700 |
40 |
45 |
300 |
Power requirement：380V,50-60Hz,3P
Up/down travel：200mm
Angle deviation：±0.5
Vertical deviation：±0.5mm/300mm
AOTAI CNP series High speed pipe cutting and beveling machine is a kind of efficient pipe cutting and beveling prefabrication CNC machine.designed to cut, bevel, single point on the pipe with high speed. considerable heavy wall and for any type of material.
Range for pipe OD：50-914mm
AOTAI CND Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. automatic feeding
