OVERVIEW

The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light

weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.

FEATURES

1、Cold cutting, without influence the material of the pipe

2、ID mounted, adopt T structure

3、Varity of beveling shape: U, Single-V, double-V,J beveling

4、It can also be used for repairing inner wall and deep hole processing.

5、Working range:12.5-330mm

6、Driven motor: Pneumatic and Electric

7、Customized machine is acceptable

CAPABILTY

1、Pipe end beveling
2、Inside beveling
3、Pipe facing

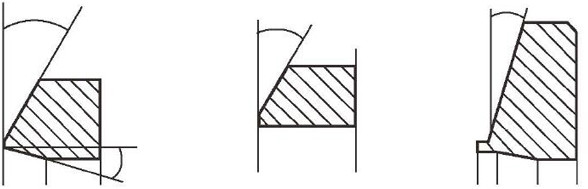

BEVELING SHAPE

MODEL AND SPECIFICATION

Model		Working range ID mm	thickness mm	power kw	Rotating speed rpm
Electric	Pneumatic	Working range ID mm	thickness mm	power kw	Rotating speed rpm

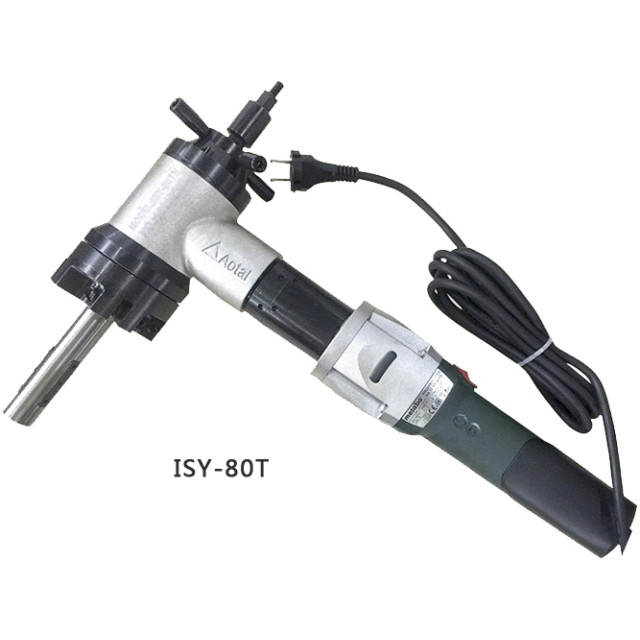

ISY-80T	TCM-80T	Ф28-76	≤15	0.90	53
ISY-90T	TCM-90T	Ф36-90	≤15	1.43	50
ISY-28TN-1	TCM-28TN-1	Ф12.5-15	≤3	1.43	70
ISY-28TN-2	TCM-28TN-2	Ф15-20	≤5	1.43	70
ISY-28TN-3	TCM-28TN-3	Ф20-28	≤6	1.43	70

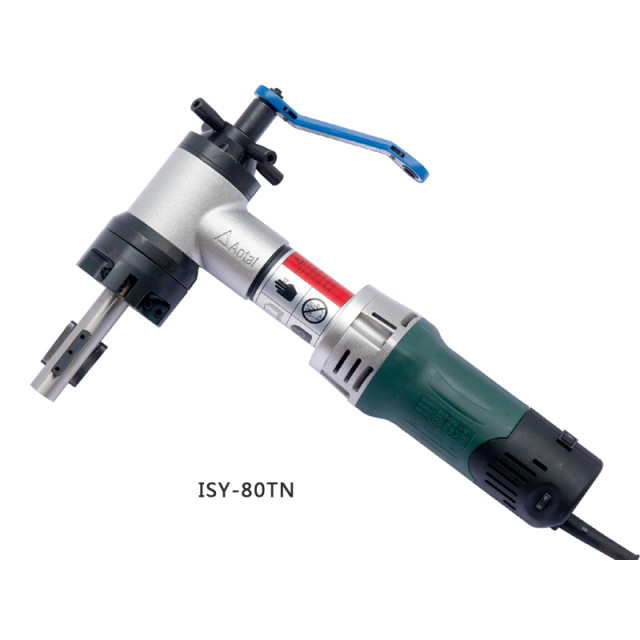

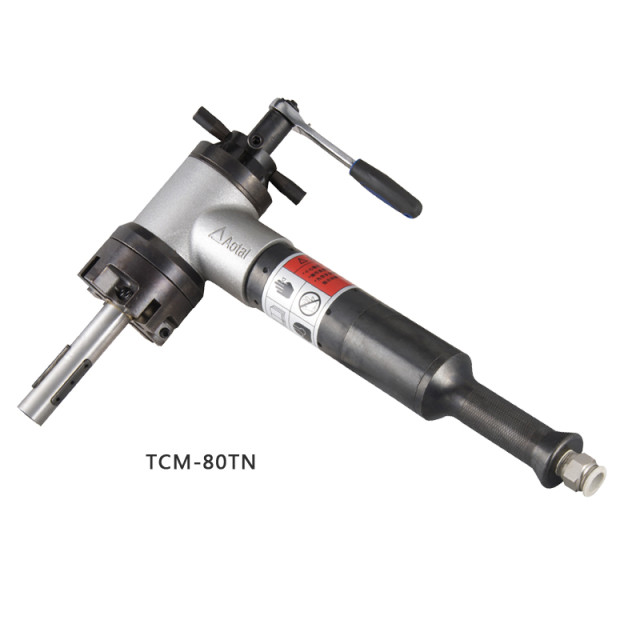

ISY-80TN	TCM-80TN	Ф26-79	≤15	1.43	70
SDC-120T	TCM-120T	Ф45-105	≤20	1.43	34
SDC-150TN	TCM-150TN	Ф60-170	≤20	1.43	34

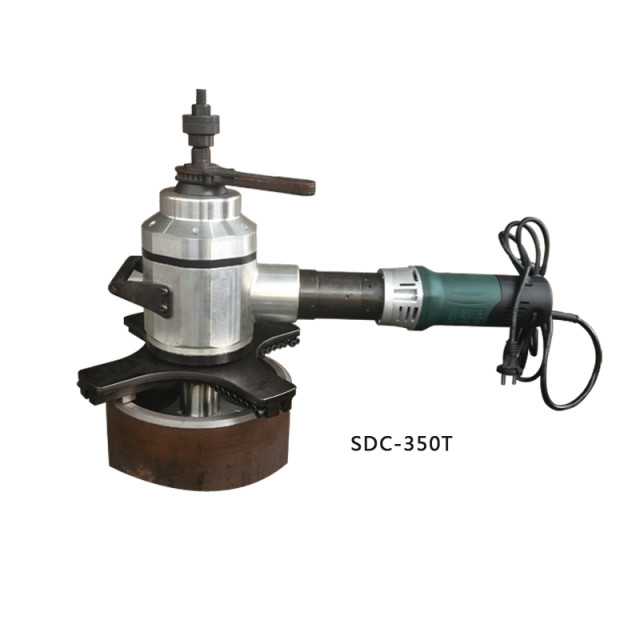

SDC-350T	TCM-350T	Ф150-330	≤20	1.43	14

Above parameters just for reference only, not acceptance criteria

POWER SUPPLIES

Electric：
Convenient power supply
Stable Performance
Popular choice
Electric requirement：220-230V 1PH 50/60HZ
Power：0.74KW,0.9KW,1.43KW

Pneumatic:
Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power：1.1HP,2HP
