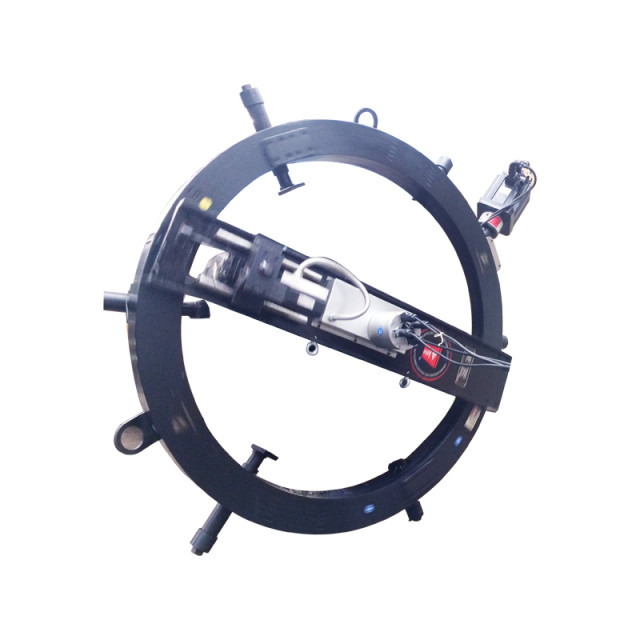

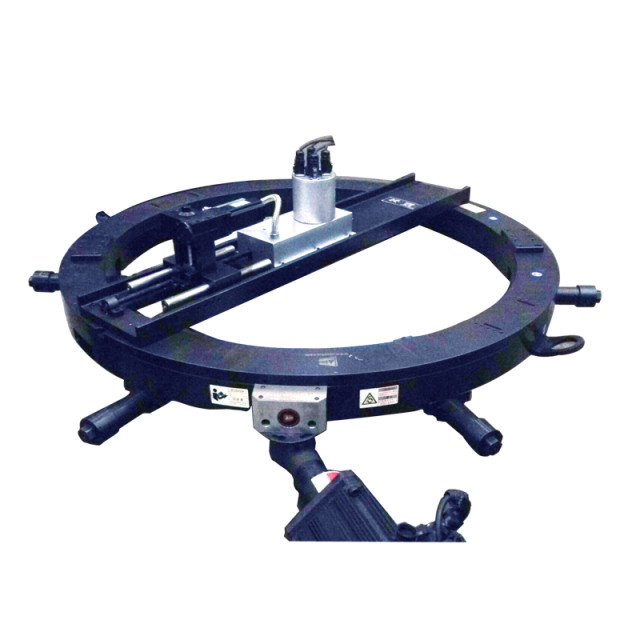

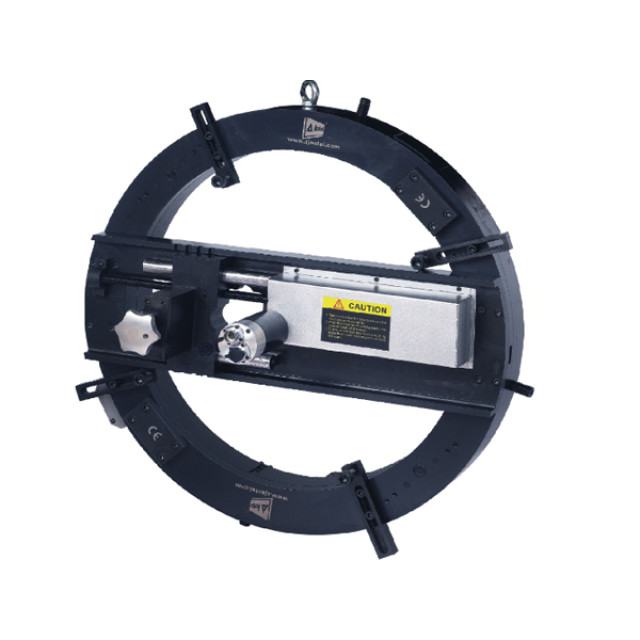

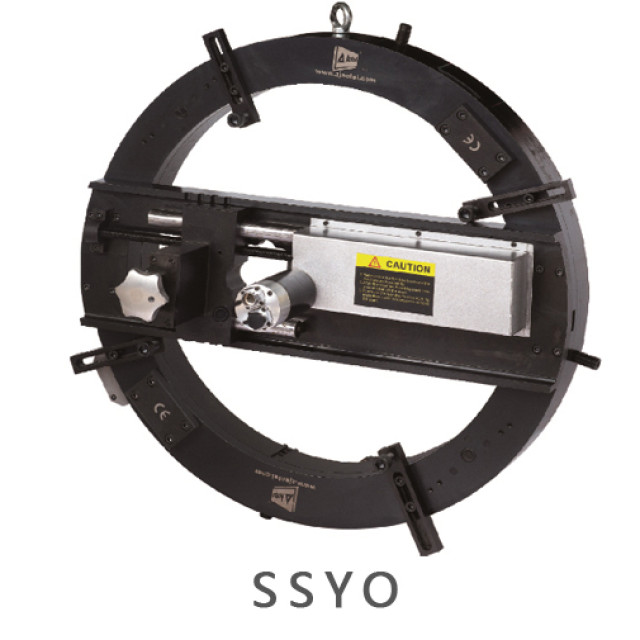

OD MOUNTED CNC FLANGE FACING MACHINE

OD mounted CNC flange facing machine is new type flange facr. It is designed for both flange and all the complicated pipe end processing. This machine is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing. The tools are controlled by the program, which makes the complex maintenance and the construction of flange and pipeline in field much easier.

1.Working range 100-3000mm，Clamping range 100-3000mm

2.The processing precision is adjustable and the processing quality is high.

3.servo motor drive, axial and radial linkage processing, program able control processing;

4.man-machine interface, preset processing parameters, and visualized simulation processing；

5.suitable for processing flange face, Serrated finishing, sealing groove and composite beveling for thick wall pipe；

6.Internal and external thread machining

1.Facing and Beveling

2.Serrated Spiral

3.Seal grooving

4.Stock finish

5.Smooth finish

6.Gramophone finish

Above parameters just for reference only, not acceptance ceriteria
