ID mounted CNC flange facing machine is new type flange facr. It is designed for both flange and all the complicated pipe end processing. This machine is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing. The tools are controlled by the program, which makes the complex maintenance and the construction of flange and pipeline in field much easier.
1.Working range 200-4521mm，Clamping range 200-4521mm
2.The processing precision is adjustable and the processing quality is high.
3.servo motor drive, axial and radial linkage processing, program able control processing;
4.man-machine interface, preset processing parameters, and visualized simulation processing；
5.suitable for processing flange face, Serrated finishing, sealing groove and composite beveling for thick wall pipe；
6.Internal and external thread machining
1、Facing and Beveling
2、Serrated Spiral
3、Seal grooving
4、Stock finish
5、Smooth finish
6、Gramophone finish
| Model | Clamping range | Working range | Stroke mm | Motorpowerkw | |||
| IDmm | mm | Radial | Axial | Spindle | Radial | Axial | |
| SSYI-610 | Ф200～500 | Ф200～610 | 210 | 110 | 2.0 | 0.4 | 0.4 |
| SSYI-1016 | Ф508～914 | Ф508～1016 | 254 | 110 | 2.0 | 0.4 | 0.4 |
| SSYI-1420 | Ф610～1016 | Ф610～1420 | 405 | 110 | 2.0 | 0.4 | 0.4 |

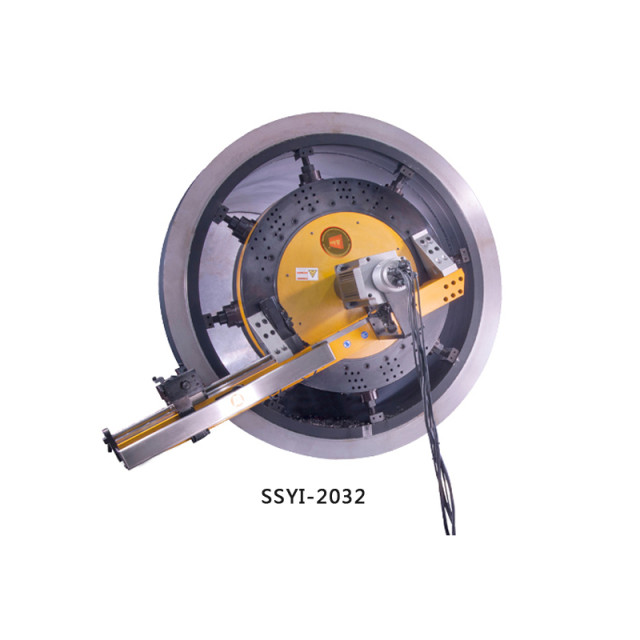

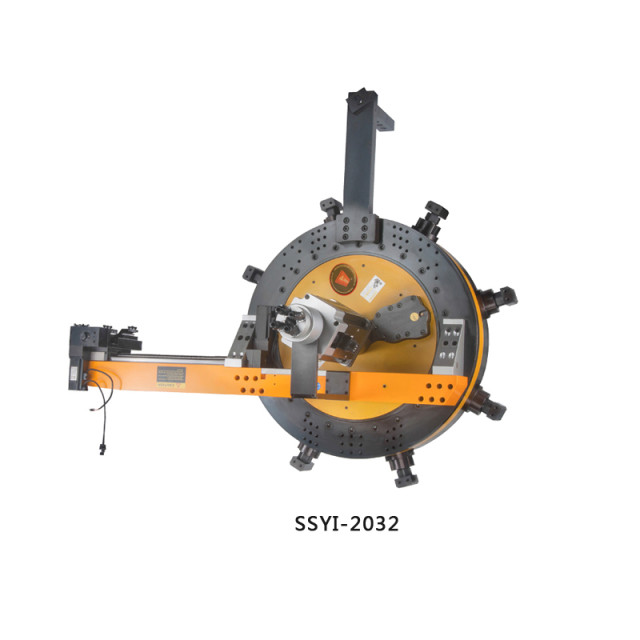

| SSYI-2032 | Ф1168～1930 | Ф1168～2032 | 432 | 110 | 5.5 | 0.4 | 0.4 |
| SSYI-3048 | Ф2210～2810 | Ф2210～3048 | 420 | 110 | 7.5 | 0.4 | 0.4 |
| SSYI-4521 | Ф2210～4521 | Ф2210～4521 | 1156 | 110 | 11 | 0.4 | 0.4 |
Above parameters just for reference only, not acceptance criteria
OD mounted CNC flange facing machine is new type flange facr. It is designed for both flange and all the complicated pipe end processing. This machine is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing.
Range for flange OD 100-3000mm
The OD mounted flange facing machine is designed for the Flange face, seal groove and serrated finish, weld prep. and counterboring.With the latest line and ball screw technology, the equipment adopts the modular design concept as a whole.
Range for flange OD150-3000mm
ID mounted CNC flange facing machine is new type flange facr. It is designed for both flange and all the complicated pipe end processing. This machine is driven by the Servo motor, and controlled by the AOTAI CNC system to realize the axial and radial feeding processing.
Range for flange ID200-4521mm
